Description:

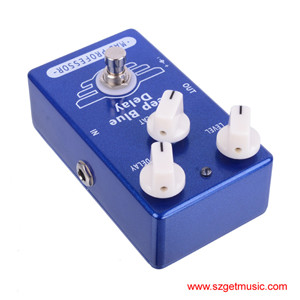

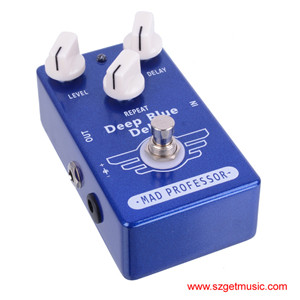

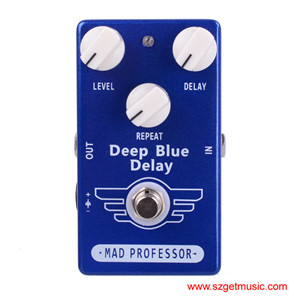

BJF design ambient delay pedal
Deep Blue Delay (DBD) is a natural sounding digital/analog delay, with analog direct signal path.
The DBD has about the same bandwidth as the classic tape echo units, and it can be used in front of an amplifier or in amplifier effects loops.
There are no noise reduction circuits, which keeps decay of echo as natural as possible.

Controls
*LEVEL: Sets the level of delayed signal mixed with straight guitar tone, fully CCW there is only straight (un-effected) guitar signal heard and fully CW gives the loudest delay.
*DELAY: Controls the delay time from 25ms (fully CCW) to 600ms (fully CW)
*REPEAT: Controls the repeats of the delay signal, fully CCW gives one repeat and at fully CW you get infinite feedback.

Electrical specifications
Current consumption: 25 to 32 mA depending on delay setting
Voltage range: 8V to 15V
Input impedance IZ: 180K Ohm's
Output drive capability: 10K Ohms
Maximum input voltage: 2V peak 650mV rms
Signal to noise ratio: 80dB
Delay time: approximately 25mS to 600mS
Power requirement: supplied via 2,1 mm standard jack
Input and output connections: via 1/4" Switchcraft
Truebypass
