Overview:
* Along with standard Volume, Drive, and Tone controls, the pedal's HP/LP (High Peak/Low Peak) switch takes the pedal from a clean boost to manic, sustain-laden distortion. True bypass switching.
*True bypass hardware switching
*Led indicator shows status of effect and battery condition
*From heavy crunch rich with overtones and feedback to spanky cleans, the pedal delivers the sounds of a great tube amp, as sell as the same sensitivity and response to your playing style

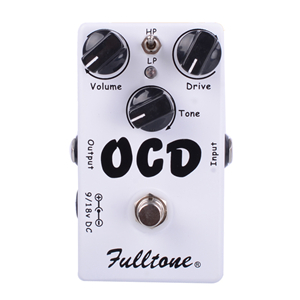

Product Interface
(1) DC JACK
An DC adaptor(9V 50ma or more) can be connected this jack.
(2) VOL KNOB
Control the level of the distortion and overdrive signal, Set the knob for matching the knob for inscreases the overdrive level to the same level when switching the effect out
(3) TONE KNOB
Turn the knob to get the high frequency
.Clockwise turning adds sharp to the sounds
(4) GAIN KNOB
Adjusts the amount of distortion and overdrive ,Clockwise turning increases the amount of overdrive and sustain of the guitar notes.
(5) LED indicator
Light up when the pedal is engage it indicates –effect on
Extinguishes to indicate—effect off(True Bypass)
(6) INPUT
Connect to the input of the pedal to your guitar or some other effects unit with a 1/4-inch mono phone plug
(7) OUTPUT
Connect to the output of the pedal to your guitar amplifier or some other effects unit with a 1/4-inch mono phone plug
(8)3PDT –ON/OFF SWITCH
This footswitch is used to turn on the effect to true bypass
(9)HP/LP
the pedal's HP/LP (High Peak/Low Peak) switch takes the pedal from a clean boost to manic, sustain-laden distortion
Features
*Tube-like overdrive and touch-sensitive response
*HP/LP switch for instant re-voicing and uses
*Volume, Tone, Drive controls
*True Bypass
*Input impedance:1Mohms
*Output Impedance:10Kohms
*Power: 9v battery or external AC adaptor(9v)
*Dimenslons:115(L)*65(W)*35(D)mm
*Weight: 282g |
