Features:

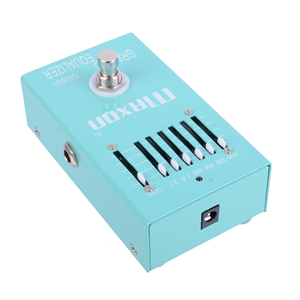

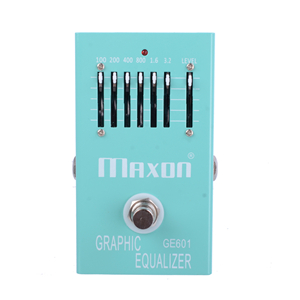

GE601 Graphic Equalizer covers six carefully selected frequency bands (100 Hz, 200 Hz, 400 Hz, 800 Hz, 1.6 KHz, and 3.2 KHz)
Over a five octave range with 12 dB of cut/boost per band.

GE601 also offers a master output Level control with 12 dB of cut/boost.
With careful use of these controls, the GE601 can be used to fine tune your sound in a variety of extremely useful ways,
a few of which are detailed below.

Pickup Simulator (humbucker to single coil) -
By cutting 200 Hz, 400 Hz, and 800 Hz and then boosting 100 Hz and 1.6 KHz,
the GE601 allows a humbucker to simulate the sharp sound of a single coil.

Pickup Simulator (passive Bass to active Bass)-
By cutting 200 Hz and slightly boosting 100 Hz and 1.6 KHz,
the GE601 can give a passive Bass the clarity and punch of an active instrument.

Pickup Simulator (single coil to piezo) -
By cutting 200 Hz, 400 Hz, and 800 Hz and boosting 100 Hz, 1.6 KHz and 3.2 KHz,
the GE601 allows a single coil electric to simulate the bright, chiming sound of an acoustic guitar with piezo pickup.

Half-cocked Wah (audio demo) - By creating a signal peak at 800 Hz,
the GE601 can emulate the tone of a wah pedal with the treadle set half-way forward. This setting is also ideal for solo boosts.

Clean Booster - By leaving all frequency bands flat and boosting the Level control to taste,
the GE601 can function as a clean booster for solos or to overdrive an amplifier's input.

With a little experimentation, the Maxon GE601 can become an essential tool to maximize the tonal
