| #MU0164 |
|
|
|
|
|
|
Features:
A total of 58 effects, up to 8 kinds can be used simultaneously.
13 classic amp models with true simulation of analog circut(TSAC) techology.
Vintage 3-band passive EQ modeling for every amp model.
6-band graphic EQ designed specifically for electric guitar.(120Hz, 250Hz, 750Hz, 1.6kHz, 3.2kHz, 6.4kHz)
11 cabinet models.
Seamless and quick preset switching.
Built-in drum machine with CD quality PCM sounds.
Up to 40 seconds phrase loop with sound on sound adds more playability.
Tap tempo control for time based effects and drum machine.
Loop sound can be played with drun machine's rhythm beat synchronously.
The AUX IN jack makes it easy to practice alone with MP3, CDs and other inputs.
The expression pedal lets you adjust the volume or effect parameters in real time.
Large color TFT LCD panel, graphic interface making the overall operation easy and intuitive.
A total of 72 presets, 36 factory + 36 user presets.
New generation 32-bit DSP, high performance 24 Bit 44.1kHz AD/DA converter.

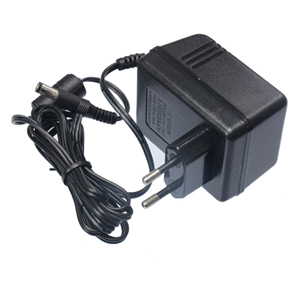

Runs on batteries and AC adaptor.
Six AA/LR alkaline batteries can be continuous used for 8 hours.
Specifications:
Effect type: 58
Effect: Max.8 simultaneous [MODULE]s
Preset memory user setting: 4 preset (A-D) * 9(1-9) groups =36
Factory setting: 4 preset (A-D) * 9(F1-F9) groups =36
Sampling frequency: 44.1kHz
A/D/A converter: 24-bit
Signal processing: 32-bit
Frequency response: 20Hz--20000Hz ±1dB
THD + N: -93dBu (<0.003%)
Dynamic range: 110dB
Display: 160 * 128 QVGA TFT LCD
Input: -20dBV@1MohmOutput: -10dBV(Output load impedance of 10k or more)
Aux in: -10dBV @ 10k or more
Phones: 20mW + 20mW (into 32-ohm load)
Power requirements: 9V DC, 300mA(pin negative)
Product weight: 701g
Package weight: 1368g
Product size: 22.0 * 15.0 * 5.2cm
Package size: 24.7 * 24.1 * 7.7cm
|
|
|
|
|
|
 |
|
|
