Features
Is the Wah pedal must be in a huge size? Is it the only way to turn on/off the Wah pedal by stepping to the bottom? Does the Wah pedal have any more functions? With all these questions, we developed a new Wah pedal---The Wahter. The Wahter recreates the vocal sweep and lush harmonics of the classic wah tone while keeping the tiny size. Using high-quality electronic components, ensuring a good response to your touch and smoothness of the tone. Unique  pressure sensor switch design relieves you from the traditional foot switch design, enabling you to concentrate more on the guitar playing.

Product features:
1.Classic Wah tone
Using high-quality electronic components, recreates the vocal sweep and lush harmonics of the classic wah tone.
2.Solid and Endurable
The Wahter is equipped with solid metal shell, which can stand for intensive use.
3.Overturn the tradition
Unlike the traditional way of turning on/off the wah pedal, The Wahter is equipped with four pressure sensors. Simply put your foot on the pedal,the pressure sensor     will sense your touch, and the LED will be lit up, indicating the wah effect is in operation.
4.TrueBypass
The Wahter has a TrueBypass design, when it is not in use, it will not affect the signals of other devices and therefore ensures the tone to be clear and lossless.
5.MINI SIZE
The Wahter inherits the tradition of MICRO SERIES, keeping the size in MINI, which makes carrying a Wah pedal no longer a trouble.
6.“Transformer”

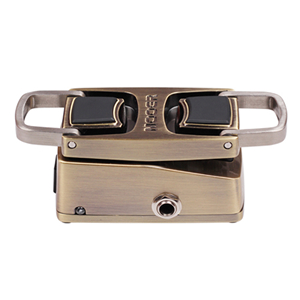

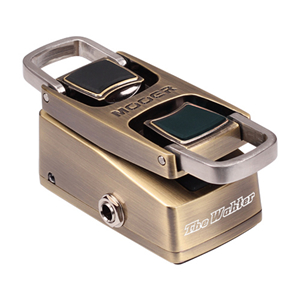

The extensible pedal ring can be extended by pulling it out from the pedal,achieving a larger contact area between the foot and the pedal and therefore to enhance     the feeling of your touch. When it is not in use, the rings can be put back and at this time, The Wahter has the same size of a MICRO SERIES pedal.
7.9V power supply
Using 9V power supply

SETUP INSTRUCTION of The Wahter
1.Plug an instrument cable from your guitar to the pedal's instrument jack and plug another instrument cable from the pedal’s output jack to your amp.
2.To turn the pedal on/off, simply put your foot on the pedal .The pressure sensor will sense your touch, and the LED will be lit up, indicating the wah effect is in operation.
3.The extensible pedal ring can be extended by pulling it out from the pedal, achieving a larger contact area between the foot and the pedal.
Two ways to play this pedal:
WAY1:By rocking your foot back and forth on the pedal, you can change the tone of your instrument instantaneously. Toe down will give you more treble, and heel down will give you more bass.
WAY2:By tapping  your foot on the pedal, the effect will be on and off frequently, thus creating an interesting sound. This is an unconventional way of using this pedal. Try it!

Specification
Input: 1/4” monaural jack (impedance:470KOhms )
Output: 1/4” monaural jack (impedance: 100Ohms)
Power Requirements: AC adapter 9V DC (center minus plug),recommended to use Mooer Micro Power
Current Draw: 128mA
Dimensions: 93.5mm (D) × 42mm (W) × 52mm (H)
Weight: 170g
