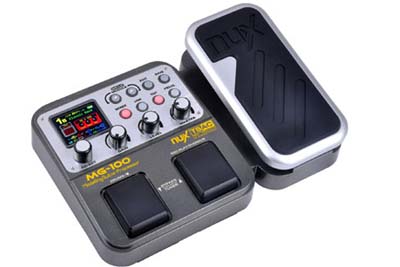

MG-100 Multi-Effects Processor

Feather:
The MG-100 has so many features, its hard to name them all. BUT, here they are!!

A total of 58 effects ; up to 8 can be used simultaneously
13 classic amp models via Cherub's TS/AC technology
Vintage 3-band passive EQ modeling for every amp model
6-band graphic EQ designed specifically for electric guitar(120Hz,250Hz,750Hz,1.6kHz,3.2kHz,6.4kHz)
11 cabinet models
Seamless and quick preset switching
Built-in drum machine with CD quality PCM sounds
Up to 40 seconds phrase loop with sound on sound adds more playability
Tap tempo control for time based effects and drum machine
Loop sounds can be played with drum machine’s rhythm beat synchronously
The AUX IN jack makes it easy to practice along with MP3, CDs and other inputs
The expression pedal lets you adjust the volume or effect parameters in real time
Large color TFT LCD panel (160 x128), graphic interface making the overall operation easy and intuitive
A total of 72 presets, 36 factory + 36 user presets
New generation 32 – bit DSP, high performance 24Bit 44.1kHz AD/DA converter
Runs on batteries and AC adaptor (ACD-007A). Six AA/LR6 alkaline batteries all up to 8 hours of continuous use.

Specification:
Effect types: 58
Effects: Max. 8 simultaneous (MODULE)s
Preset memory User settings:4 Presets (A-D) × 9 (1-9) groups = 36
Factory setting: 4 Preset (A-D) × 9 (F1-F9) groups = 36
Sampling Frequency : 44.1 kHz
Jacks: INPUT, OUTPUT, AUX IN, DC IN
AD/DA converter: 24-bit
Signal processing: 32-bit
Frequency response: 20Hz – 20000Hz ±1dB
THD + N: -93dBu (<0.003%)
Dynamic Range: 110 dB
Display: 160×128 TFT LCD
INPUT: -20dBV@ 1MΩ
OUTPUT: -10dBV (Output load impedance of 10kΩ or more)
AUX IN: -10dBV @ 10k or more
Headphones: 20mW+20mW (into 32Ω load)
Power: 9V DC, 300mA, ACD-007A  (pin negative)
Accessories: Owner’s Manual, power adaptor
